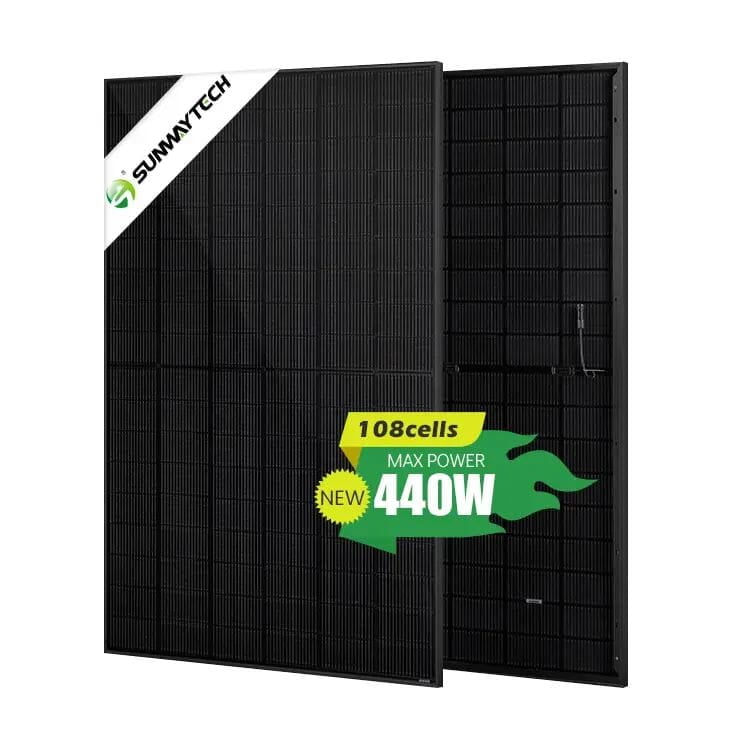

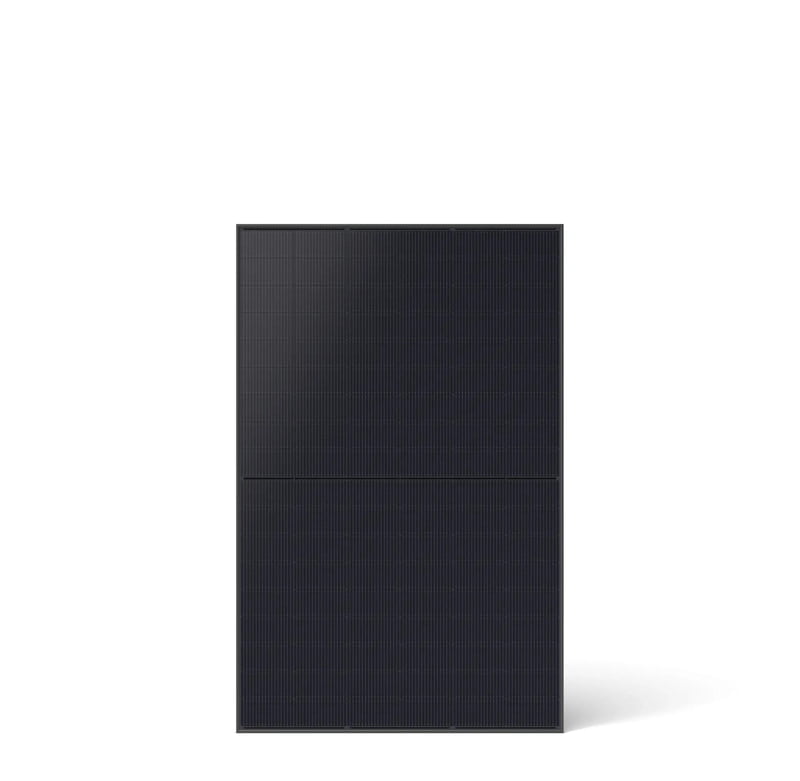

Sunway N Type TOPcon Bifacial 108 Cells 425W-440W Solar module
- Widely used of the most popular and mature type of modules for solar systems
- High power output and highest conversion efficiency of 22.30%
- Anti-reflective and anti-soiling surface reduces power loss from dirt and dust
- Outstanding performance in low-light irradiance environments
- Excellent mechanical load resistance:
- Certified to withstand high wind loads (2400Pa) & Snow loads (5400Pa）
- Positive power tolerance: 0~+5W
€82.00 - €105.00
Choose Quantity
Product Details
As a private individual or company, do you want to take maximum advantage of solar energy?
With our solar panels you choose high-quality and efficient panels that guarantee a high energy yield and a long lifespan.
Our panels are designed to perform optimally in all weather conditions, so you save on your energy costs year after year.
Our solar panels offer an ideal solution for the business market to make business premises, production halls and logistics
centers more energy efficient.
In combination with our commercial batteries and EMS (Energy Management System) you can store excess solar energy
and use it smartly for peak shaving, load balancing and energy trading.
This way you reduce your energy costs and increase your independence from the grid.
Our solar panels are compatible with 1-phase and 3-phase inverters, making them perfectly connected to both private
and large-scale installations.
With high efficiency and reliable performance, you get the most out of every ray of sunshine.
Choose sustainability, cost savings and maximum energy yield with Sunwaytech solar panels.
Combine them with our smart energy solutions and prepare your home or company for the future.
| Electrical Parameters | ||||
| Module | SW425N-108 ~SW440N-108 | |||
| Encapsulation | Glass/Eva/Cell/Eva/Glass | |||
| Maximum Power Pmax(W) | 425 | 430 | 435 | 440 |
| Maximum Power Voltage (Vmp/V) | 31.70 | 31.88 | 32.06 | 35.55 |
| Maximum Power Current (Imp/A) | 13.41 | 13.49 | 13.57 | 13.65 |
| Open Circuit Voltage (Voc/V) | 38.30 | 38.49 | 38.68 | 42.88 |
| Short Circuit Current (Isc/A) | 14.15 | 14.23 | 14.31 | 14.39 |
| Module Efficiency (%) | 21.80 | 22.00 | 22.30 | 22.50 |
| Power Tolerance (W) | 0~+5W | |||
| Temperature Coefficient of Isc (αIsc) | +0.046%/ C | |||
| Temperature Coefficient of Voc (βVoc) | -0.25%/C | |||
| Temperature Coefficient of Pmax (γPmp) | -0.30%/ C | |||
STC | Irradiance 1000W/m, Cell Temperature 25 ℃, Air Mass 1.5 |
